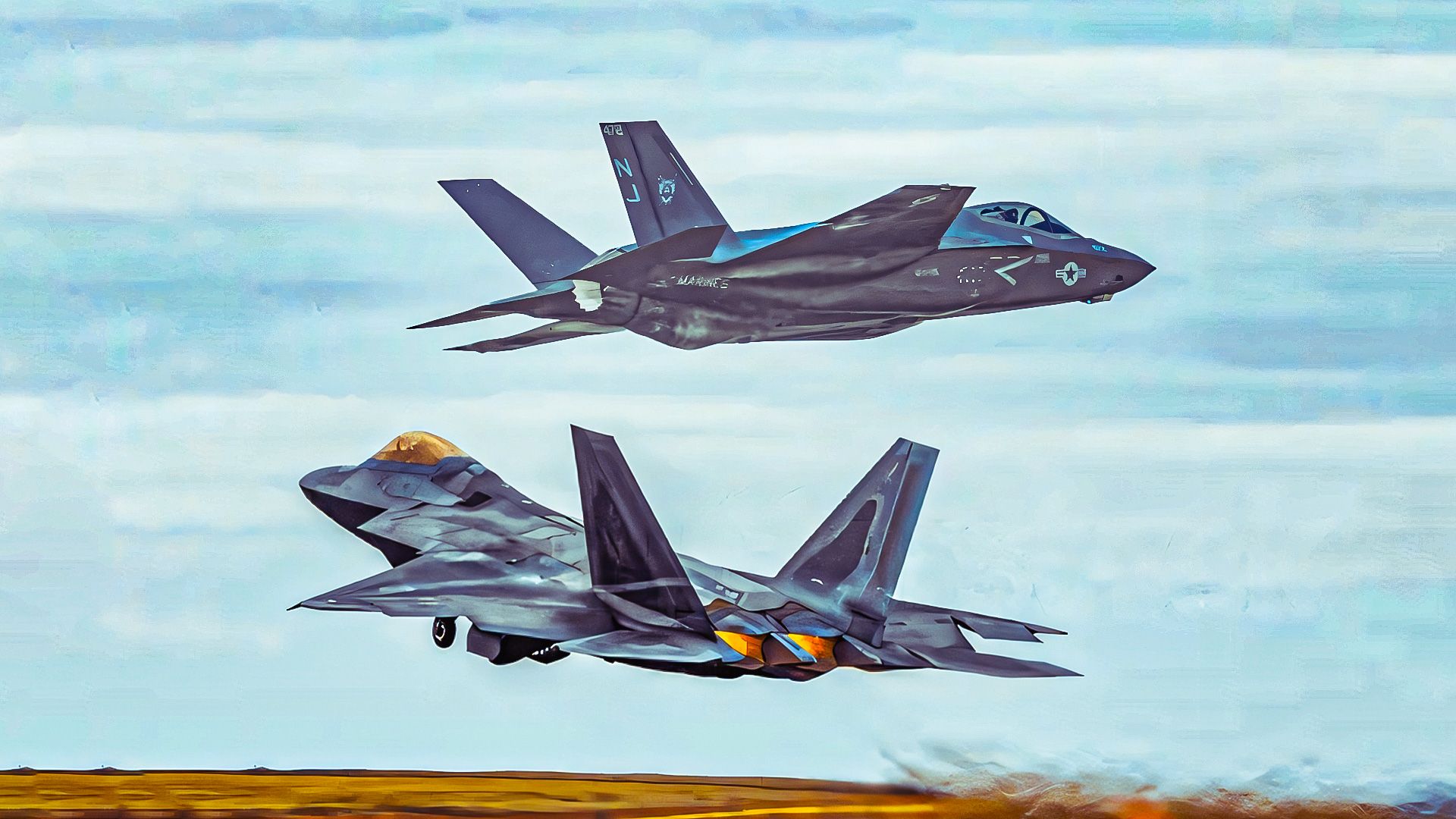

Inside the Cockpits: F-22 Raptor vs. F-35 Lightning II

At the dawn of the 21st century, two titans of aerospace engineering emerged as the epitome of fifth-generation fighter technology: the F-22 Raptor and the F-35 Lightning II, both formidable creations from Lockheed Martin. On paper, their specifications share a compelling resemblance – advanced stealth, blistering supersonic performance, and state-of-the-art avionics. However, the true divergence between these aerial predators becomes strikingly clear the moment a pilot settles into the cockpit. It is here, at the interface between human and machine, that these jets reveal their profoundly different operational philosophies, shaping what pilots see, feel, and control in the intense crucible of modern aerial combat.

This article delves deep into these critical distinctions, dissecting their cockpit designs, control philosophies, revolutionary helmet systems, and the F-35B’s unparalleled vertical landing capability – a feature that uniquely sets it apart from its air superiority counterpart. Whether you are a dedicated aviation enthusiast, a seasoned pilot, or simply curious about the sophisticated world of contemporary warbirds, we invite you to step into the jet seats and gain insight into the minds of the elite aviators who command these marvels of engineering.

Two Fifth-Generation Fighters, Two Distinct Philosophies

While sharing the lineage of being stealthy, fifth-generation fighters from Lockheed Martin, the F-22 Raptor and F-35 Lightning II are more akin to specialized cousins than identical siblings. Both incorporate advanced avionics, sensor fusion (albeit to different degrees), and high-performance engines, yet their fundamental design philosophies and intended missions diverge significantly, influencing every aspect of their operation, right down to the pilot’s experience within the cockpit.

The F-22 Raptor, born out of the United States Air Force’s Advanced Tactical Fighter (ATF) program of the 1980s, was conceived as the ultimate air superiority fighter. Its design prioritized unmatched speed, agility, and stealth to achieve absolute dominance in contested airspace. Equipped with twin Pratt & Whitney F119-PW-100 engines, revolutionary thrust-vectoring nozzles, and a high-G airframe, the Raptor is engineered for rapid engagements, energy management, and close-quarters tactical dogfights at the extreme edge of the performance envelope. Its sensor architecture and avionics package, while advanced for its time, were meticulously tailored to provide pilots with razor-sharp, immediate information for threat engagement and precise energy management, enabling them to "own" the sky. Its limited production run, ultimately totaling 187 operational aircraft, underscored its role as a specialized, high-end air dominance asset designed to counter peer threats.

In stark contrast, the F-35 Lightning II emerged from the Joint Strike Fighter (JSF) program, an ambitious initiative to develop a global, multi-service solution capable of fulfilling a wide spectrum of combat roles. The F-35 was designed to be a versatile multirole fighter, proficient in strike missions against ground targets, air-to-air combat, intelligence gathering, surveillance, and reconnaissance (ISR). Its operational flexibility extends to various platforms, including land bases, aircraft carriers (F-35C), and even amphibious assault ships via vertical landings in its F-35B variant. This unparalleled versatility has led to its adoption by the US Air Force, Marine Corps, and Navy, as well as the air forces of numerous allied nations worldwide, making it the most ubiquitous fifth-generation fighter. The F-35’s central philosophy revolves around comprehensive sensor fusion, integrating data from its Active Electronically Scanned Array (AESA) radar, Electro-Optical Targeting System (EOTS), Distributed Aperture System (DAS), and network links like Link 16 into a single, cohesive tactical picture. This capability transforms the Lightning II into more than just a fighter jet; it functions as a highly integrated, networked combat node, sharing and receiving information across the modern battlespace.

These foundational differences—the F-22’s dedication to pure air dominance versus the F-35’s emphasis on multirole networked combat and information superiority—directly dictate their diverging cockpit layouts and control experiences, fundamentally shaping how pilots operate these sophisticated machines from the moment they strap in.

Cockpit Designs: Tradition Meets Next-Gen Integration

For any fighter pilot, the cockpit is their office, their sanctuary, and their weapon. The instrument panels of the F-22 and F-35 immediately reveal their distinct design philosophies.

In the F-22 cockpit, pilots are greeted by a sophisticated "glass cockpit" that, while groundbreaking at its introduction in the late 1990s, maintains a more conventional layout compared to its younger sibling. Six color multifunction displays (MFDs) are strategically arranged to present crucial information: airspeed, altitude, tactical maps, weapon status, navigation data, and radar information. A prominent Head-Up Display (HUD) projects critical flight and targeting symbology directly into the pilot’s forward field of view, enabling eyes-forward flying, essential during high-speed maneuvers and combat engagements. The Raptor also employs a Hands-On Throttle And Stick (HOTAS) control philosophy, where controls for weapons systems, radar modes, and communication are integrated directly into the throttle and stick, minimizing the need for pilots to divert their gaze from the battlespace. A notable aspect of the F-22’s cockpit development was the initial plan for a helmet-mounted display (HMD) system, but its fielding was ultimately delayed due to technical challenges and cost concerns, meaning many operational Raptors fly without the advanced helmet systems now standard on later-generation fighters. This design choice, while ensuring reliability, underscores the F-22’s emphasis on traditional pilot interpretation of discrete data sources.

The F-35 cockpit, by contrast, represents a radical departure from conventional fighter jet design, embodying a "next-generation integration" philosophy. Dominating the center of the instrument panel is a massive 20-by-8-inch panoramic touchscreen display (PCD). This single, reconfigurable panel consolidates what would typically be spread across multiple smaller screens in other aircraft. Pilots can customize the layout via touch, prioritizing information relevant to their current mission phase – whether it’s ground attack, air-to-air, or ISR. Traditional HUDs are entirely absent in the F-35; all flight, sensor, and targeting information is projected directly onto the pilot’s visor through the revolutionary Helmet Mounted Display System (HMDS). This helmet replaces the physical HUD, overlaying essential symbology—such as velocity vector, altitude, heading, weapon cues, and targeting reticles—onto the pilot’s natural field of view. Critically, the HMDS integrates imagery from the F-35’s Distributed Aperture System (DAS), an array of six infrared cameras strategically placed around the airframe. This allows pilots to "see through" the aircraft’s structure, providing an unprecedented 360-degree, spherical view of their surroundings, even at night or in adverse weather conditions. This fusion of sensor data with helmet-based visuals represents a significant leap in situational awareness and cognitive offloading compared to previous fighters.

Cockpit Control Comparison

Sources: Lockheed Martin, US Air Force, JSF.mil

Pilots often describe the F-22 cockpit as a highly refined evolution of traditional design, where displays and switches are in familiar, intuitive, but physical locations. The F-35 cockpit, conversely, feels more like a sophisticated, highly customizable tech workstation. It is information-rich, fundamentally oriented around automation and decision support, and designed to present a coherent, actionable picture rather than requiring purely manual data synthesis. This fundamental divergence shapes every action a pilot takes, from scanning the horizon for threats to managing complex weapon systems.

The F-22: Pilot Authority Through Precise Controls

For aviators transitioning from legacy fighters like the F-15 Eagle or F-16 Fighting Falcon, the F-22 cockpit offers a familiar, yet vastly amplified, experience. It feels like a natural progression, where the core principles of pilot control and direct aircraft manipulation remain paramount, albeit enhanced by modern computation and seamless stealth integration. The Raptor’s design places a premium on control consistency and tactile feedback, reinforcing the pilot’s direct connection to the aircraft’s raw performance.

Pilots utilize the classic HOTAS (Hands-On Throttle And Stick) setup, which allows them to manage a vast array of functions—including radar modes, targeting cues, and weapon assignments—without ever removing their hands from the primary flight controls. While the multifunction displays provide crucial information, the F-22 demands that the pilot actively synthesize and integrate this data, performing a conscious tactical process that heavily rewards experience, keen observational skills, and superior situational awareness. This hands-on approach is central to the F-22’s air superiority mission.

The broad HUD remains a central anchor for flight and combat data, projecting critical flight cues such as altitude, airspeed, and angle of attack directly into the pilot’s forward view. During engagements, tactical symbology is layered on top, providing immediate threat and targeting information. Navigation and weapons systems are accessible through the MFDs below, requiring pilots to momentarily shift their gaze and cognitive focus. This constant balance between precision control and mental workload defines the F-22 flying experience.

As reported by aviation experts, pilots consistently highlight the Raptor’s exceptional responsiveness and agility. This is owed in large part to its revolutionary thrust-vectoring nozzles and the meticulously tuned fly-by-wire flight control laws. These features enable unparalleled maneuverability, allowing the F-22 to perform feats of aerial acrobatics that defy conventional aerodynamics, such as the Pugachev’s Cobra. Combined with the intuitive placement of switches and displays, the F-22 instills profound confidence in its pilots, particularly during highly dynamic air-to-air engagements. Unlike the F-35, the Raptor’s design philosophy deliberately avoids excessive automation of decision logic; instead, it presents the raw, processed data and empowers the pilot to interpret and act upon it. This makes the Raptor cockpit feel like a finely tuned instrument panel, designed around a human pilot at the absolute center of every tactical decision loop, an embodiment of the "pilot’s aircraft" ideal.

The F-35: Data Fusion And Situational Awareness Redefined

The F-35 cockpit represents a paradigm shift in fighter design, moving towards a system-assisted decision-making model that expertly blends human control with advanced automation. Here, the aircraft doesn’t merely display data; it actively interprets, processes, and pre-packages it for the pilot. This "fusion engine" integrates disparate sensor tracks, critical threat information, comprehensive navigation data, and precise weapon status into a unified, coherent tactical picture, presented in an easily digestible format.

Central to this transformative experience is the Helmet Mounted Display System (HMDS). Developed jointly by Collins Aerospace (formerly Rockwell Collins) and Elbit Systems, the HMDS entirely obviates the need for a physical HUD. Instead, all critical flight, sensor, and targeting information is projected directly onto the pilot’s visor. What makes this system truly revolutionary is its integration with the aircraft’s Distributed Aperture System (DAS). The DAS comprises six infrared sensors strategically distributed across the F-35’s airframe, providing a seamless, spherical, 360-degree view around the jet, regardless of visibility. The HMDS overlays this "God’s eye view" onto the pilot’s natural vision, effectively allowing them to "see through" the airframe, even looking through the floor or ceiling of the cockpit.

The practical implications of this technology are profound. As detailed by Military Aerospace, targets can be designated simply by looking at them; the HMDS precisely tracks the pilot’s gaze direction and links it directly to weapon cueing systems. This enables "high-off-boresight" missile engagements, allowing pilots to launch weapons at targets far outside the traditional frontal cone of view—a capability that would be impossible with a conventional HUD. This sensory fusion drastically reduces the pilot’s cognitive load, freeing mental bandwidth from data interpretation to tactical execution, and exponentially expands situational awareness. In high-intensity, multi-threat environments, the ability to "see through" the airframe and instantly grasp an integrated threat picture fundamentally alters how pilots engage and survive.

Furthermore, the F-35’s systems are heavily software-centric. Pilots interact not only through the traditional HOTAS but also via intuitive touchscreens on the PCD and advanced Direct Voice Input (DVI) recognition systems. Dynamic symbology can be rapidly configured for specific mission types—whether it’s ground attack, air-to-air combat, or ISR roles—making the F-35 a truly mission-adaptable platform. This highly automated, information-rich environment shifts the pilot’s role from raw data interpreter to strategic decision-maker and mission manager, optimizing their effectiveness in a complex and rapidly evolving battlespace.

VTOL: The F-35B’s Unique Game-Changer

Beyond the cockpit’s advanced design, one of the most glaring operational differences between the F-35 and the F-22 is the F-35’s remarkable Short Takeoff and Vertical Landing (STOVL) capability. However, this transformative feature is exclusive to one member of the Lightning II family: the F-35B variant, primarily flown by the US Marine Corps and various international naval forces. This unique ability allows the aircraft to operate from very short runways, austere expeditionary bases, and, crucially, from smaller amphibious assault ships, providing an unparalleled level of operational flexibility unmatched by the F-22 or indeed most other modern fighter aircraft.

The concept of vertical or near-vertical flight is not entirely new. The iconic Hawker Siddeley Harrier Jump Jet, which first flew in the 1960s, pioneered operational VTOL flight decades earlier. The Harrier achieved its vertical capabilities through vectored thrust from swiveling exhaust nozzles, enabling it to hover, land, and take off from unprepared fields or small ship decks. However, the Harrier, revolutionary as it was, lacked the stealth characteristics, supersonic performance, and advanced avionics that define fifth-generation fighters.

The F-35B’s approach to STOVL is a triumph of modern engineering, far more sophisticated and integrated than its predecessors. At the heart of this capability is a massive shaft-driven lift fan, ingeniously located behind the cockpit. This fan is powered by the F-35’s gargantuan Pratt & Whitney F135 main engine via a clutch and a drive shaft system. When transitioning to vertical flight mode, doors open to expose the lift fan, which generates a substantial amount of vertical thrust. Simultaneously, a three-bearing swivel duct nozzle at the rear of the main engine directs its powerful exhaust downward, providing additional lift. As described by Engineer Live, these primary thrust components are complemented by roll posts in the wings, which use bleed air from the engine to provide crucial stability and balance, allowing the aircraft to hover and land vertically with astonishing precision.

From the pilot’s perspective, STOVL operations are far more intricate than simply "hovering." They demand real-time, nuanced control of multiple lift systems, careful throttle modulation, and intense situational awareness due to the close proximity of ships, terrain, or other obstacles. While the aircraft’s sophisticated software provides significant assistance by integrating and simplifying piloting inputs, the pilot remains actively engaged, managing energy, precise position, and mission priorities. It’s a demanding blend of helicopter-like finesse and jet-fighter precision, requiring extensive training and skill. This capability traces a direct lineage back to the Harrier’s pioneering work, yet it is seamlessly integrated into a fighter boasting cutting-edge stealth, advanced avionics, and supersonic performance. It stands as a testament to the extraordinary advancements in aviation technology, allowing an aircraft to transition from hovering like a rotorcraft one minute to dive-bombing a target at Mach 1.6 the next, all while acting as a critical node in a networked battlefield.

Two Fighter Cockpits, Two Combat Mindsets

Despite their shared fifth-generation heritage and common manufacturer, the F-22 Raptor and F-35 Lightning II embody fundamentally different combat mindsets, each optimized for specific roles in modern warfare. The core of each aircraft reflects its primary mission and the prevailing doctrine at the time of its conception.

The F-22 Raptor embodies the pinnacle of pilot authority and direct control. Its design emphasizes mastery of flight dynamics, precision in maneuvering, and conscious, active tactical decision-making. The Raptor rewards pilots who have meticulously honed their instinctive scanning and control skills over years of rigorous training, valuing the human element as the ultimate arbiter of combat success. Its cockpit is a testament to empowering the pilot with raw, unfiltered performance data and direct control over the aircraft’s immense power and agility, particularly in the realm of air-to-air engagements.

The F-35 Lightning II, conversely, represents the leading edge of decision support and integrated awareness. Its design philosophy prioritizes reducing pilot workload through advanced sensor fusion and its revolutionary Helmet Mounted Display System. This approach allows pilots to shift their focus from the laborious task of data acquisition and interpretation to the critical process of strategic decision-making and mission execution. This fundamental shift reflects the increasing complexity and information overload of modern combat environments, where the ability to act quickly and decisively on fused sensor intelligence is paramount across multiple domains.

Ultimately, neither approach is inherently "better"; rather, they are optimized for distinct missions and operational philosophies. The Raptor’s cockpit emphasizes traditional pilot control and razor-sharp tactical awareness for air superiority. The Lightning II’s cockpit leverages immense computing power to synthesize and simplify complex information, making it easier for the pilot to understand and act upon. Both designs, however, share a common goal: to keep the pilot at the center of an increasingly complicated battlespace, whether that empowerment comes through highly tactile control and raw performance or through immersive, data-rich visualization and automated decision support. Together, they represent the zenith of current fighter technology, each a master of its domain, and collectively, they set the benchmark for the next generation of aerial combat.
