The Ultimate Guide to Overland Suspension: Why Less is Often More When Modifying Your Rig.

If you are thinking about building an overland rig, chances are high that one of the first modifications you will consider making to your vehicle is upgrading its suspension. In the rapidly expanding world of off-road exploration, where the "overland" aesthetic has become a billion-dollar industry fueled by social media imagery, the pressure to transform a stock vehicle into a rugged, terrain-conquering beast is immense. Suspension is the single modification that can make the biggest difference in how a vehicle drives, determining its ability to soak up washboard roads, clear obstacles, and carry the heavy weight of camping gear. However, if you are not careful, it is also one of the easiest ways to ruin your rig, turning a reliable daily driver into a high-maintenance, ill-handling liability.

A solid suspension upgrade can totally transform how a truck drives off pavement. When executed correctly, a high-quality system yields more ground clearance, provides the ability to run larger tires without the frustration of wheel-well rubbing, and helps the vehicle handle the constant heavy load of rooftop tents, refrigerators, and water tanks. Yet, the market is flooded with "budget-friendly" options that promise the look of a lifted truck without the engineering to back it up. A cheap suspension lift often consists of a simple spacer—essentially a metal or polyurethane puck—that sits on top of your vehicle’s factory struts or springs. While these kits provide the desired height, they frequently cause the rig to ride like a dump truck, introducing a host of mechanical issues that can lead to catastrophic failure in remote locations.

Seasoned off-roaders, who have been modifying various trucks and 4x4s for decades, often look back at their early builds with a sense of "if I only knew then what I know now." The allure of the "lifted look" is powerful, but the reality of automotive engineering is uncompromising. To understand why suspension modifications are so precarious, one must first look at the immense resources Original Equipment Manufacturers (OEMs) like Toyota, Ford, and General Motors pour into vehicle development. These companies employ thousands of engineers and spend millions of dollars on computer modeling, track testing, and crash simulations to ensure a vehicle’s geometry is optimized for safety, longevity, and efficiency. When an enthusiast installs a $300 spacer kit, they are essentially betting that a piece of un-engineered hardware can outperform the collective wisdom of a multi-billion-dollar R&D department.

One of the most critical warnings for any novice builder is to beware of cheap "lift kits." As noted, these spacers do nothing to increase wheel travel. In fact, they often decrease it by forcing the suspension into a range of motion it was never intended to inhabit. Because the shock absorber is now operating at a different extension point, it can "top out" or "bottom out" violently, leading to internal damage. Furthermore, these kits put extreme stress on CV (constant velocity) axles, ball joints, and tie rods. By changing the angle of these components, a cheap lift accelerates wear, leading to torn boots and snapped axles—problems you do not want to encounter fifty miles from the nearest paved road. There is not an aftermarket company in existence that has the resources to match OEM design standards for a budget price point; if you think a few hundred dollars constitutes an "upgrade," you are likely compromising your vehicle’s integrity.

This brings us to a fundamental truth of automotive modification: Newton’s Third Law applies to trucks as much as it does to physics. Every action has an equal and opposite reaction. When you modify a vehicle, you are fundamentally altering the way it was designed to operate. There can be valid reasons to do this—for instance, if you are building a specialized rig for traversing the deep snow fields of Iceland or the rock-strewn trails of Moab—but it is incredibly easy to get caught up in the "modification arms race." Many enthusiasts believe they need a three-inch lift and 35-inch tires just to navigate a well-maintained Forest Service road, when in reality, a stock 4×4 pickup or SUV is more than capable of handling such terrain.

The "opposite reactions" to a lift kit are numerous and often overlooked. First, increasing the ride height raises the vehicle’s center of gravity. This has an immediate and negative impact on handling and aerodynamics. By lifting the body and frame, you have increased the rig’s rollover risk during emergency maneuvers. Furthermore, you have changed how the vehicle behaves in a crash. Automakers must comply with strict federal safety regulations, such as those set by the National Highway Traffic Safety Administration (NHTSA). They conduct crash testing on stock vehicles, not on trucks with six inches of lift and heavy steel bumpers. While adding a winch bumper doesn’t automatically make a vehicle a "death trap," it does change the timing of airbag deployment and the effectiveness of crumple zones. Most aftermarket companies simply do not have the capacity to test their components against these rigorous safety standards.

Aerodynamics also suffer significantly. A lifted truck presents a larger frontal area to the wind, and the increased gap between the tires and the body creates turbulent airflow. This doesn’t just result in worse fuel economy—which can drop by 15% to 20%—it also impacts the vehicle’s cooling system. Modern trucks are designed with specific air pressure differentials to pull heat away from the engine. Lifting the vehicle can disrupt the vacuum of air that flows underneath, potentially leading to overheating when towing or hauling heavy loads in steep terrain.

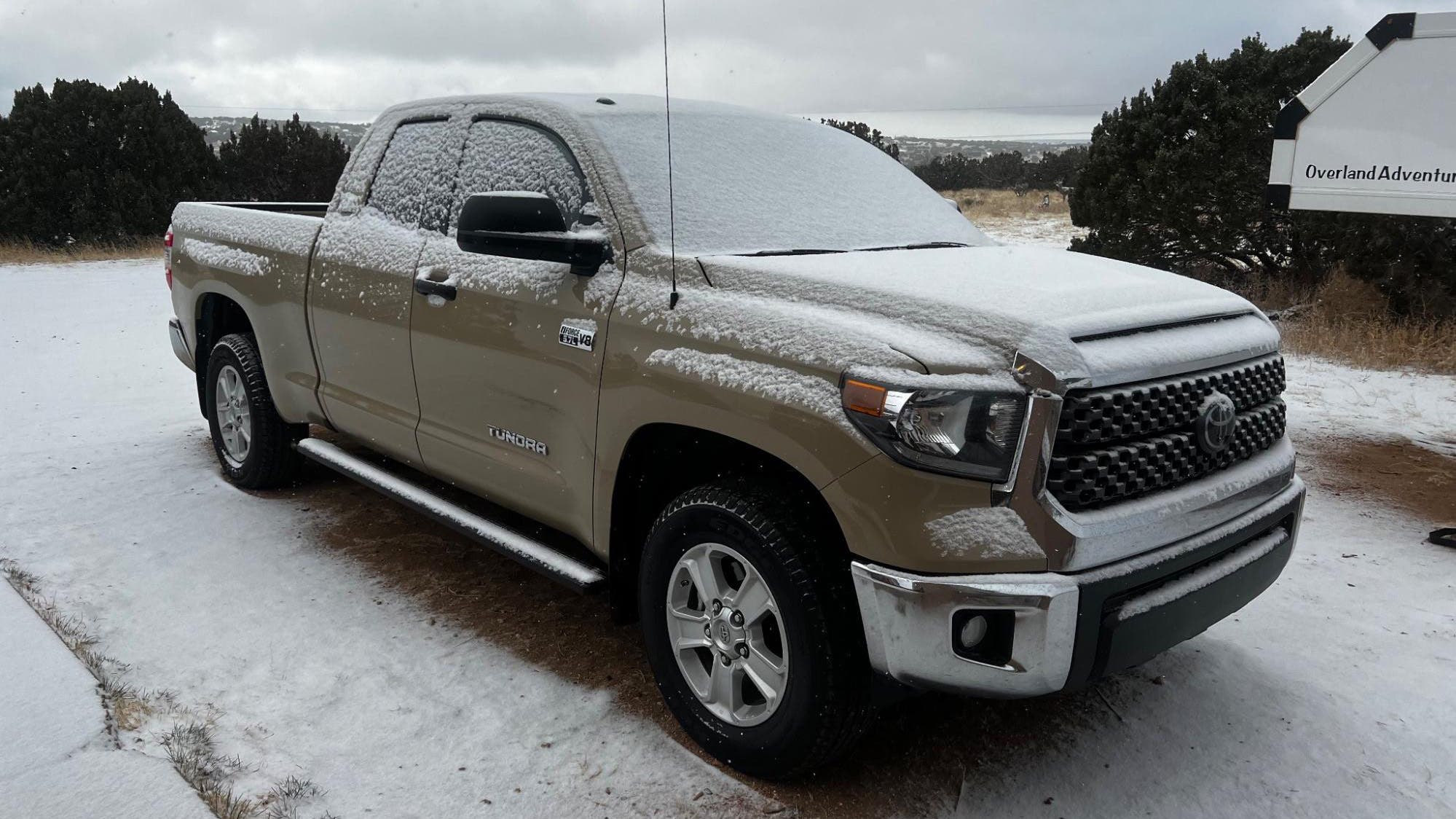

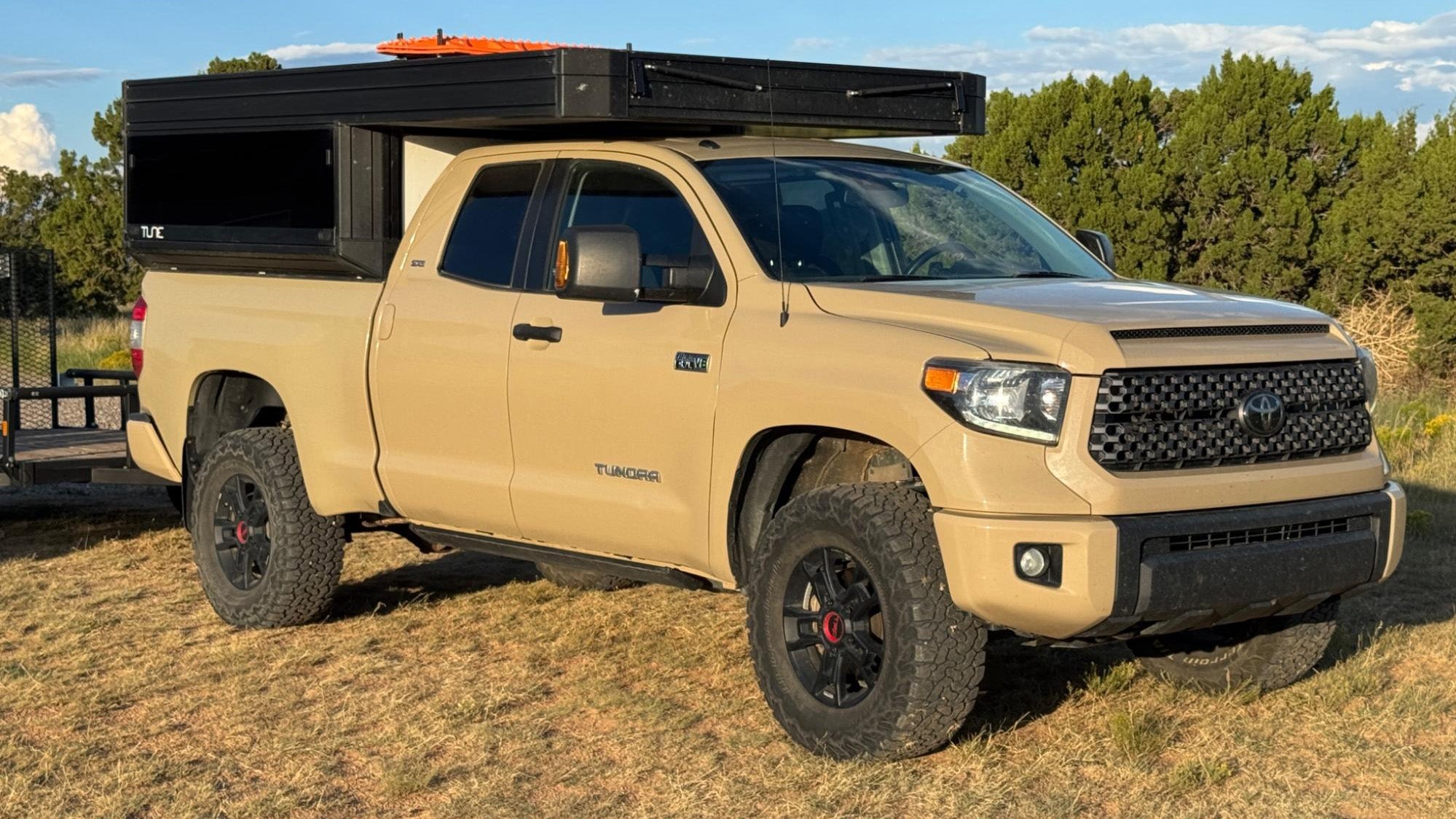

To further illustrate the hidden costs of modification, one must look at the "15 percent rule" championed by Dave Harriton, the owner of American Expedition Vehicles (AEV) and a leading expert in the off-road industry. Harriton posits that if you increase the tire size of a vehicle by 15 percent, you should effectively decrease its Gross Vehicle Weight Rating (GVWR) by 15 percent to compensate for the added stress on brakes, bearings, and the drivetrain. For a vehicle like a 2018 Toyota Tundra with a 7,100-pound GVWR, running 35-inch tires (a common upgrade) would require a capacity reduction of roughly 639 pounds. Given that many half-ton trucks already have a meager payload capacity of around 1,300 to 1,500 pounds, adding large tires and a lift kit can leave you with almost no remaining capacity for passengers, fuel, and camping gear.

Beyond geometry and weight, there is the often-ignored issue of maintenance. High-end shocks, such as those from King or Fox, are marvels of engineering. These "race-style" shocks feature external reservoirs, large bores, and adjustable valving that allow a truck to glide over rough terrain at high speeds. However, these components require a level of upkeep that most daily drivers find exhausting. While a standard factory shock absorber might last 70,000 to 100,000 miles without a second thought, high-performance race shocks often require a complete rebuild every 20,000 to 30,000 miles. In harsh, salty, or silty environments, that interval can be even shorter.

The logistics of this maintenance are daunting. If you drive the American average of 12,000 to 15,000 miles per year, you are looking at a suspension overhaul every two years. This process involves removing the shocks from the vehicle—leaving it on jack stands—and shipping them to a specialized facility. The cost can exceed $200 per shock for parts alone, not including labor or shipping. For most overlanders who simply want to reach a remote campsite in comfort, these race-bred components are overkill and represent a significant "hassle tax."

For the majority of users, the better path lies in "set it and forget it" upgrades. Brands like Bilstein (with their 5100 series), Old Man Emu (the Nitrocharger line), and Eibach offer shocks that provide a noticeable improvement in ride quality and load-carrying ability without the need for constant rebuilding. These shocks are designed to last 100,000 miles and are valved specifically for the weight of an overland-bound vehicle. They offer a "middle ground" that prioritizes reliability over trophy-truck performance.

If you are willing to spend more for a premium experience without the 20,000-mile rebuild headache, there are hybrid options. The Old Man Emu BP-51, Dobinsons MMR, or Bilstein 8100 series are designed as internal-bypass shocks. They offer the plushness of a race shock with a much longer service life—often around 70,000 miles. These systems use a large bore and remote reservoirs to manage heat, but they are sealed more effectively against the elements than pure race components.

So, how should you modify a vehicle for overlanding? The most professional advice is to modify it as little as possible. Every "improvement" is a trade-off. If you truly need high-performance off-road capability, you are often better off purchasing a vehicle that was engineered for that purpose from the factory. Trucks like the Ford Raptor, Chevrolet Silverado ZR2, or the AEV-upfitted RAM Prospector come with warranties and integrated systems where the suspension, brakes, and electronics are all designed to work in harmony. While the initial price tag is high, the cost of "piecemealing" a base-model truck into a similar performer often ends up being higher once you factor in labor, broken parts, and lost resale value.

If you insist on modifying your own rig, follow the "Rule of Moderation." Keep the lift under two inches to preserve CV axle angles and stability. Stick to the "plus one" tire sizing rule—going only one size larger than the factory offering. Finally, skip the race shocks unless you are prepared to become your own mechanic. By keeping it simple and copying the specifications of the manufacturer’s own off-road trims (like the TRD Pro or Trail Hunter series), you ensure that your vehicle remains a reliable tool for adventure rather than a constant project in the garage. In the world of overlanding, the best modification is the one that allows you to actually reach your destination.
