Here’s How Much Larger The GE9X Is Compared To The GE90

Then came the General Electric GE9X, designed specifically for the upcoming Boeing 777X. At first glance, it looks like a natural evolution of the GE90, a bigger sibling in a lineage of aviation giants, but a closer inspection reveals something more significant. The GE9X is not just incrementally larger; it represents a deliberate and profound shift in how size, efficiency, and performance are balanced, pushing the boundaries of what is possible in turbofan technology. While the raw numbers tell part of the story, the real difference lies in what that added size allows engineers to achieve in terms of thermodynamic efficiency, reduced emissions, and quieter operation, all critical factors for 21st-century commercial aviation. It’s a marvel of modern engineering, integrating advanced materials and aerodynamic principles to create an engine that is both colossal and remarkably refined. Let’s take a closer look at the intricate details that set these two titans apart.

The Six-Inch Difference That Changes Everything

The most commonly cited comparison between the General Electric GE90 and the GE9X is their fan diameter. The GE90 measures a staggering 128 inches across (325 centimeters), while the GE9X stretches even further to an unprecedented 134 inches (340 centimeters). On paper, six inches (15 centimeters) might not sound like a major leap, but in practice, it is enormous, especially when considering the physics of a turbofan. The fan is the largest single component of a turbofan engine, and even a small increase in diameter translates into a much larger intake area. Because the area of a circle increases exponentially with diameter (Area = πr²), those extra inches allow the GE9X to ingest and accelerate significantly more air, fundamentally altering its performance characteristics. This seemingly modest increase in diameter results in a disproportionately massive increase in the engine’s frontal area and, critically, the volume of air it can process.

This principle is the key to understanding why the General Electric GE9X is bigger. Modern turbofans generate most of their thrust by accelerating a large volume of air at a relatively low speed, rather than blasting a small amount of air very fast, a concept known as propulsive efficiency. By increasing fan diameter, engineers can push more air around the engine core, significantly improving propulsive efficiency and reducing fuel burn. The GE9X’s 134-inch fan enables a bypass ratio of about 10:1, which is notably higher than the GE90’s impressive 9:1 bypass ratio. This higher bypass ratio directly contributes to better efficiency, meaning more of the engine’s thrust comes from the slower-moving bypassed air, resulting in less jet noise and greater fuel economy. The increase in diameter also necessitated a redesign of the entire fan module, including the fan case, which acts as a protective shroud and plays a crucial role in airflow management.

The visual impact of this increase cannot be overstated either, with the General Electric GE9X’s fan case measuring roughly 11 feet (3.35 meters) across. To put this into perspective, this makes it wider than the fuselage of some narrowbody aircraft, such as the Boeing 737 or Airbus A320. For aviation enthusiasts and even the casual observer alike, the difference is immediately noticeable. Standing next to it, the GE9X does not just look like a slightly larger engine; it looks like a different class of machine altogether, a true testament to the ongoing quest for efficiency and scale in aerospace engineering. Its sheer presence dominates the aircraft wing, signaling a new era of ultra-efficient long-haul flight.

A Noticeable Jump In Scale

While its fan diameter gets the most attention, the General Electric GE9X is also larger in overall proportions. Its nacelle and outer casing are meticulously designed to accommodate the increased airflow and improved aerodynamics required by the bigger fan, presenting a more integrated and streamlined profile. The engine’s width grows more than its length, giving it a bulkier, yet paradoxically more modern and efficient appearance when mounted under the wing of the Boeing 777X. This wider stance is not merely aesthetic; it is a functional requirement to optimize the flow of air around and through the engine, minimizing drag and maximizing performance.

The General Electric GE90, often used on the Boeing 777-300ER, was already massive by any standard, its presence a defining characteristic of the aircraft. However, the GE9X takes that presence even further. It weighs over 21,000 lbs (9,525 kg) – roughly the weight of an entire Boeing 737 engine – and has a wider overall profile, reflecting the significant structural changes needed to support the larger fan and manage the higher airflow. At the same time, engineers avoided simply scaling up every dimension proportionally. The length of the GE9X, for example, remains relatively controlled compared to its diameter, showing that the design emphasis was meticulously placed on airflow efficiency and propulsive effectiveness rather than sheer, unoptimized size. This careful balance ensures that the increased dimensions translate directly into performance gains without introducing undue weight or aerodynamic penalties.

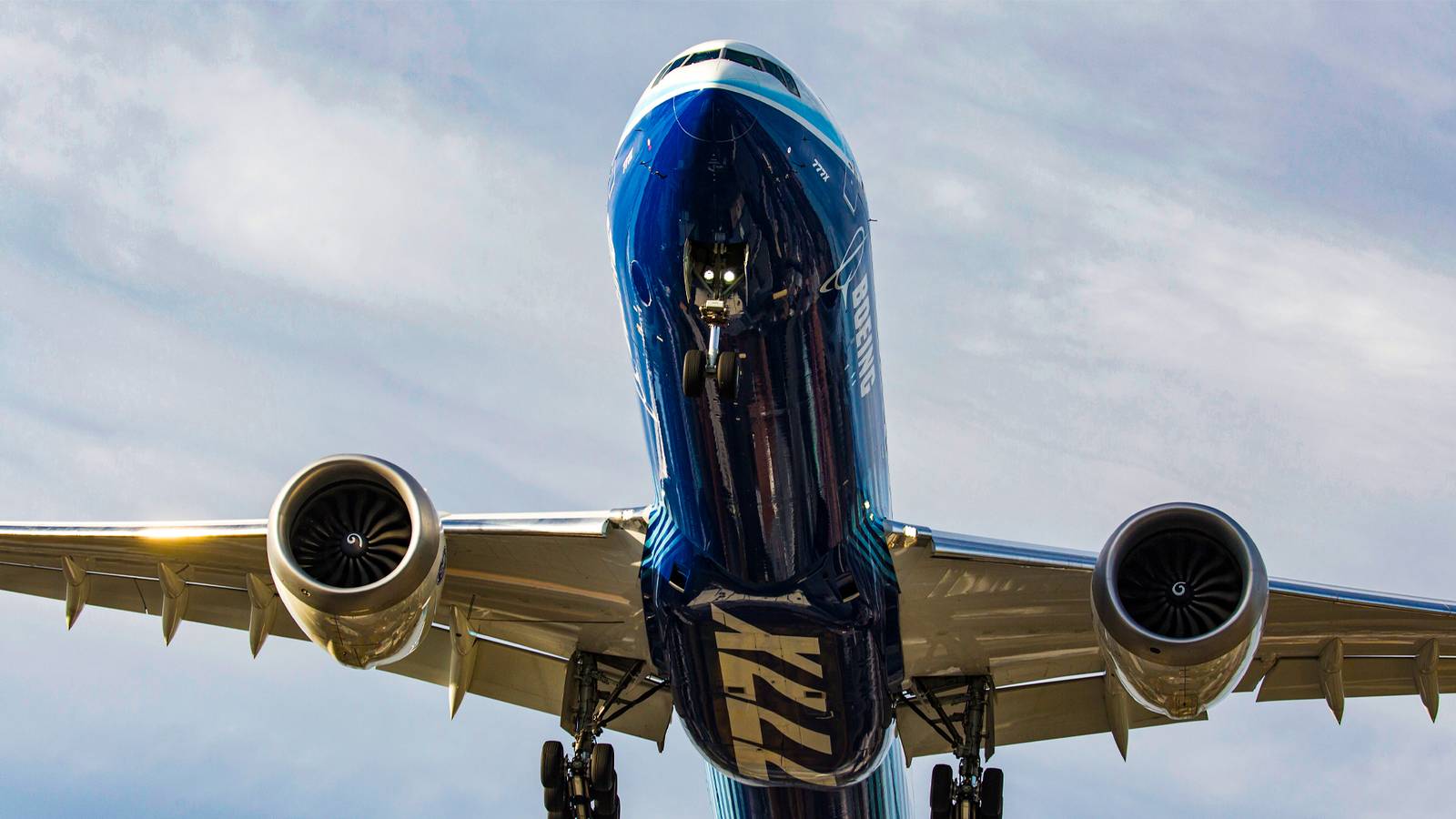

Another important aspect of this size increase is how it integrates seamlessly with its host aircraft. The Boeing 777X features a meticulously redesigned carbon-fiber composite wing, which is not only longer but also boasts higher ground clearance, allowing it to comfortably accommodate the gargantuan GE9X engine without compromising safety, ground operations, or aerodynamic performance. This symbiotic design approach between airframe and engine is crucial for achieving the desired efficiencies. The aircraft also features innovative folding wingtips, a unique feature that, although not directly related to its engines, forms part of its overall operational performance strategy by allowing the massive 777X to fit into standard airport gates, a critical consideration for airlines. The combination of the engine’s scale and the aircraft’s advanced design creates an optimized system for ultra-long-haul flights.

Fewer Blades, Bigger Impact

One of the most surprising and technologically advanced ways the General Electric GE9X differs from the GE90 is in the number of fan blades. The GE90 uses 22 robust composite fan blades, a groundbreaking innovation at its time. In contrast, the GE9X reduces that number significantly to just 16 blades. At first glance, this seems counterintuitive; one might expect a larger fan to require more blades, not fewer, to manage the increased airflow. However, this reduction is a clear demonstration of profound advancements in aerodynamics, material science, and computational fluid dynamics (CFD). GE engineers leveraged these tools to optimize each blade’s performance.

Advances in materials and aerodynamic design have made each blade substantially more capable. The GE9X’s fourth-generation composite blades are not only larger but are also stronger, lighter, and more aerodynamically efficient, allowing them to move a greater volume of air with fewer components. These blades utilize advanced carbon-fiber composite materials, meticulously designed for optimal sweep, twist, and chord, ensuring maximum air ingestion and acceleration with minimal drag. This change contributes directly to the engine’s size difference, with each blade on the GE9X being longer and more intricately sculpted than those on the GE90, helping to maximize airflow while simultaneously reducing aerodynamic resistance.

Fewer blades also translate into several tangible benefits: less overall weight for the fan module, reduced aerodynamic resistance (drag), and fewer parts to manufacture and maintain, all of which significantly improve the engine’s efficiency and reliability. The result is that the GE9X does not just look bigger; it behaves differently, embodying a paradigm shift in fan design. Its fan system is optimized to take full advantage of its increased diameter, achieving superior performance not by simply adding more components, but by making each component inherently more efficient and powerful. This design philosophy highlights GE Aerospace’s commitment to pushing the boundaries of what is achievable in turbofan engine technology.

A Larger Fan Means A Higher Bypass Ratio

The increase in fan size directly leads to one of the most important performance differences between the two engines: the bypass ratio. The General Electric GE90 already boasted an exceptionally high bypass ratio for its era, enabling its remarkable efficiency. However, the GE9X pushes this further, reaching an impressive bypass ratio of approximately 10:1, compared to roughly 9:1 on the GE90. Bypass ratio refers to the proportion of air that flows around the engine core (bypassed air) compared to the amount of air that passes through it and is combusted (core flow). A higher bypass ratio generally means significantly better fuel efficiency, lower noise levels, and reduced emissions, as most of the thrust is generated by the slower-moving, cooler bypass air. The larger fan of the GE9X makes this high bypass ratio possible by enabling a greater volume of air to bypass the core, maximizing propulsive efficiency.

This is where the added size becomes truly meaningful and transformative. The GE9X is not bigger just for visual impact or raw power; it is bigger because that increased diameter enables a fundamentally more efficient way of generating thrust. By moving a much larger mass of air at lower speeds, the engine substantially reduces fuel consumption and greenhouse gas emissions while also operating considerably more quietly, a critical factor for airlines facing stricter noise regulations. In practical terms, this corresponds to approximately a 10% improvement in fuel efficiency relative to the GE90. This is a substantial gain in an industry where even small percentage improvements can have major economic implications for airlines, translating into billions of dollars in fuel savings over an aircraft’s lifetime, and significant environmental benefits.

The higher bypass ratio also contributes to a reduction in noise pollution, as the exhaust velocity of the bypassed air is lower, resulting in a quieter engine footprint. This is a crucial advantage for airports and communities located near flight paths. Furthermore, the enhanced efficiency reduces the carbon footprint per passenger-mile, aligning with global efforts to make aviation more sustainable. The GE9X, therefore, represents not just an engineering triumph but also a strategic response to the evolving demands of the aerospace industry for more environmentally friendly and economically viable long-haul flight.

The GE9X Has Less Thrust Despite Its Size

One of the most interesting and counterintuitive aspects of the General Electric GE9X is that, despite being physically larger than its predecessor, it produces less maximum certified thrust than the GE90. The most powerful variant of the GE90, the GE90-115B, can deliver an astonishing 115,000 pounds of thrust in service (and holds a Guinness World Record for 127,900 pounds during testing), while the GE9X is typically rated at about 105,000 pounds. This seemingly contradictory fact often sparks confusion, as a larger engine would intuitively be expected to produce more power.

However, this difference in peak thrust reflects a sophisticated and deliberate design philosophy. Instead of maximizing thrust at all costs, GE Aerospace engineers focused on optimizing efficiency for the specific requirements of the Boeing 777X. The GE90-115B was designed to provide immense power to a very heavy aircraft (the 777-300ER) for long-range operations, sometimes pushing the limits of twin-engine performance. The GE9X, on the other hand, is designed for a new generation of aircraft.

The reason lies in how modern aircraft are designed. The Boeing 777X features more advanced aerodynamics, including its longer, composite wings with folding wingtips, and lighter, stronger materials throughout its airframe, much like the revolutionary Boeing 787 Dreamliner before it. These advancements mean the 777X does not require the same extreme thrust levels as earlier models to achieve superior performance and range. The General Electric GE9X’s larger, more efficient fan allows it to generate the necessary thrust more efficiently and economically, even if its peak certified number is lower. The overall aircraft-engine system is designed for optimal fuel burn and operational costs, where excess thrust beyond what is needed becomes a penalty in terms of weight and fuel consumption. This optimization for efficiency over sheer brute force is a hallmark of contemporary aerospace engineering.

The Role Of Advanced Materials

Making an engine larger is not simply a matter of increasing dimensions; it presents immense engineering challenges. As size increases, so do the stresses on components, especially at the incredibly high rotational speeds and extreme temperatures required for a turbofan engine. This is where the General Electric GE9X profoundly distinguishes itself from the GE90 through its pioneering use of advanced materials and manufacturing techniques.

The General Electric GE90 was already groundbreaking in its era for its innovative use of carbon-fiber composite materials for the fan blades, which were significantly lighter and stronger than traditional metal designs, allowing for the massive fan diameter. The GE9X builds dramatically on this foundation, not only with newer, more refined composite fan blades (its 4th-generation) but also by integrating revolutionary ceramic matrix composites (CMCs) in the engine core. CMCs are a class of advanced materials composed of ceramic fibers embedded in a ceramic matrix, offering exceptional heat resistance and strength-to-weight ratios compared to traditional superalloys.

These advanced materials are critical to enabling the General Electric GE9X’s larger size and its remarkable efficiency. CMCs allow the engine core to operate at significantly higher temperatures and pressures without the need for as much cooling air, which would otherwise bleed energy from the engine. This increased thermal efficiency directly translates to better fuel burn. Furthermore, CMC components are substantially lighter than their metallic counterparts, helping to offset the overall increase in engine dimensions and contributing to the GE9X’s impressive power-to-weight ratio. In fact, some components are lighter despite being larger, which is a testament to the material science advancements. The combination of a bigger fan, fewer blades, and these advanced materials, including those manufactured through additive processes (3D printing) for intricate parts, creates a design that would have been impossible during the General Electric GE90’s development era. The GE9X is larger because technology now allows it to be larger without sacrificing efficiency, reliability, or introducing prohibitive weight penalties.

Seeing The Difference In Real Life

Photographs comparing the General Electric GE90 and GE9X often provide the most striking illustration of their size difference, serving as a powerful visual testament to the relentless march of aviation technology. What stands out in these comparisons is not just that the GE9X is bigger, but how that extra size is meticulously distributed and integrated into a harmonious, aerodynamically optimized design. The engine appears more refined and aerodynamically smooth, with a wider intake and a slightly different overall shape, a testament to countless hours of computational fluid dynamics and wind tunnel testing. It looks less like a simple enlargement and more like a new generation of design, a sculptural blend of power and efficiency.

For anyone fortunate enough to stand near one on the ground, perhaps at an airshow or a testing facility, the difference is unmistakable – the General Electric GE90 already feels enormous, its sheer scale inspiring awe. But the GE9X takes that sense of scale and pushes it just a bit further, enough to redefine expectations of what a jet engine can look like, dwarfing even the largest human. Its presence is commanding, a symbol of the pinnacle of modern aerospace engineering.

We will have to wait until at least 2027 to see the General Electric GE9X in action on a regular commercial basis, when the Boeing 777X enters commercial service. This highly anticipated aircraft is poised to become a game-changer for long-haul routes. Emirates is currently set to become the world’s largest operator of the aircraft, with the carrier, based at Dubai International Airport (DXB), having a staggering 270 on order – 35 of the smaller Boeing 777-8 and 235 of the larger Boeing 777-9. Other significant operators include Qatar Airways and Lufthansa, further underscoring the global impact expected from this new generation of widebody aircraft. The GE9X, as its sole powerplant, will be at the heart of this revolution, enabling airlines to fly further, more efficiently, and with a reduced environmental footprint, cementing its legacy as a true marvel of the skies.
