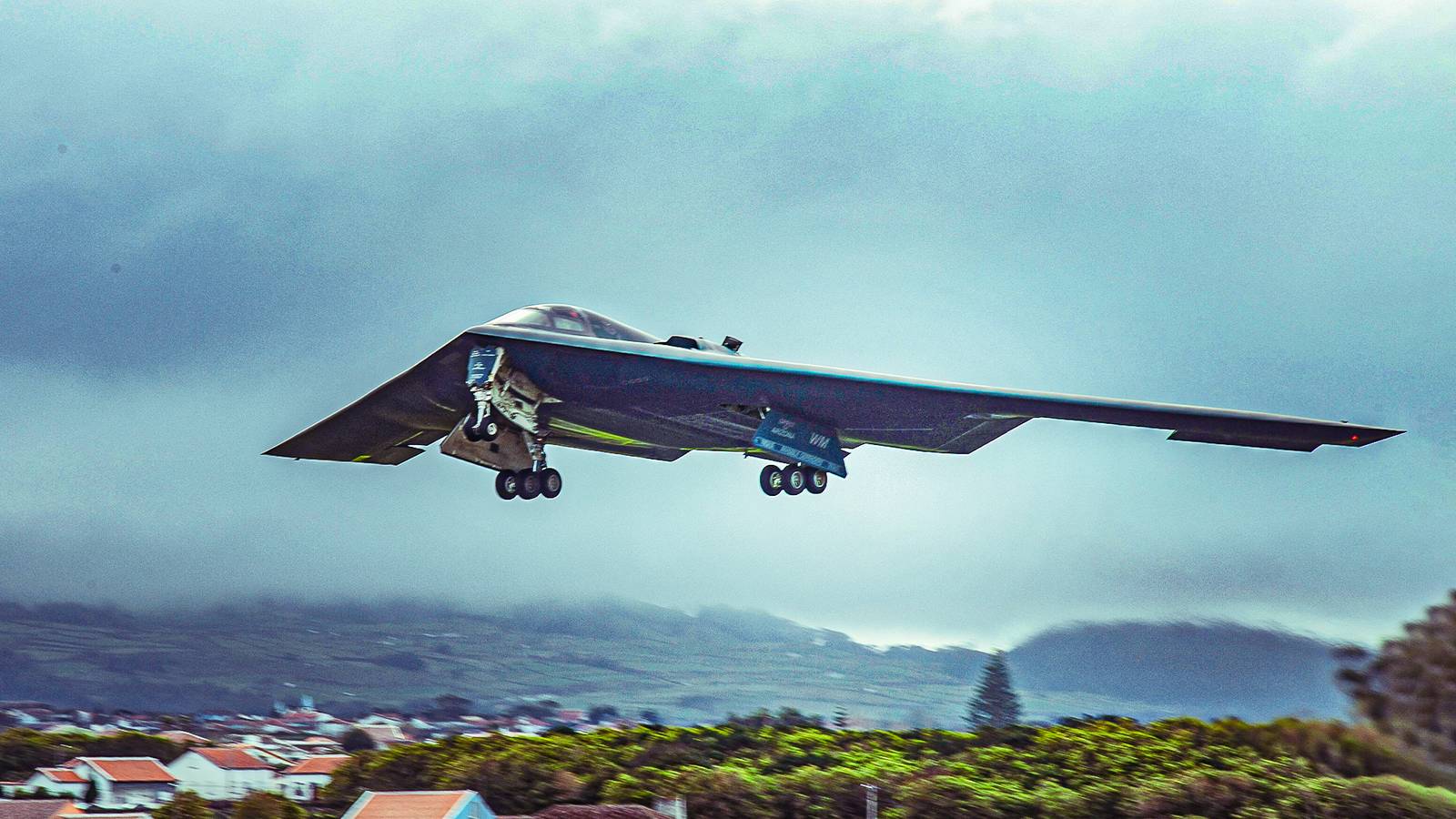

The B-2 Spirit: How It Stays Invisible to Enemy Radar

Published March 23, 2026, 8:00 PM EDT

The Northrop Grumman B-2 Spirit was not merely the first fifth-generation bomber to ever take flight; it represents the ultimate culmination of aeronautical pioneer Jack Northrop’s lifelong dream of creating a true flying wing aircraft. Its deceptively simple, bat-like appearance belies the incredible complexity of its design and engineering, a marvel forged from the darkest days of the Cold War. Conceived as a machine to penetrate the most formidable air defenses imaginable and deliver devastating payloads in unthinkable conflicts, the B-2 was engineered from day one to empower its pilots, rendering them virtually invulnerable on the battlefield.

While theoretically possible to detect and engage a B-2 under highly specific and improbable circumstances, the advanced equipment and rigorous training of its flight deck crews make it far more resilient than its already revolutionary stealth design suggests. Aircrew leverage real-time threat imagery, constantly updated through intelligence feeds, to visualize enemy radar coverage. This allows them to dynamically chart a course through "holes" in the enemy’s electromagnetic blanket, navigating areas where adversaries are least likely to obtain a "weapons-quality" track – a lock precise enough to guide a missile. The B-2 flies in electronic silence, a ghost gliding through the sky, relying on a passive data link to receive critical information and employ highly refined tactics to accomplish its mission without emitting a single detectable signal.

Engineering a Ghost: The Science of Radar Absorbent Material

The B-2’s primary radar-evading design feature is its iconic flying wing shaping, seamlessly integrated with its advanced Radar Absorbent Material (RAM) coating. This unique silhouette eliminates vertical stabilizers, presenting a continuous, aerodynamically pure curvature of the fuselage. The bomber’s leading and trailing edges are meticulously crafted at identical angles, a geometric precision designed to disperse any weakened radar signals that are not absorbed by the RAM. This shaping focuses radar reflections into a few very small, precisely controlled "spikes" of energy, while the RAM itself converts a significant portion of the incoming radar signal energy into thermal energy, effectively neutralizing it.

The B-2 bomber’s RAM coating is a highly specialized composite, primarily utilizing Carbonyl Iron Powder and other ferrite-based materials. When radar waves impact this surface, the electromagnetic energy interacts with the magnetic properties of the iron particles, inducing eddy currents and magnetic hysteresis losses that convert the radar energy into heat. This conversion process, coupled with the coating’s layered structure, features a dielectric gradient meticulously engineered to prevent radar reflection. The outer layers are designed to be reflectively similar to air, gradually changing impedance to trap incoming waves deeper within the material, where they are dissipated or subjected to destructive interference, cancelling out reflected waves.

The meticulous construction and maintenance of the B-2’s stealth surfaces are paramount. Even minimal gaps or imperfections can create radar energy reflections, compromising the aircraft’s low observable profile. To combat this, specialized conductive materials, colloquially referred to as "Butter," are combined with unique tape to eliminate microscopic gaps across the bomber’s myriad panels, ensuring seamless surface continuity. This "Butter" is not merely filler; it’s a critical component that maintains the electrical and physical integrity of the stealth surfaces. Advanced techniques and specialized equipment are employed in maintenance procedures to apply RAM at a precise thickness, often measured in fractions of a millimeter, to guarantee ideal performance across the specific frequency ranges of adversary radars.

Managing heat signatures is equally critical for a stealth jet, as all objects emit infrared energy that is detectable by sophisticated sensors. The B-2 is powered by four General Electric F118-GE-100 engines, notably lacking afterburners. This design choice prevents the extreme high-temperature exhaust and supersonic booms associated with afterburner use, which would instantly betray the aircraft’s presence. Furthermore, the engines are buried deep within the airframe, and their exhaust is routed over the upper wing surface. This strategic placement utilizes the wing itself as a natural shield against infrared detection from ground-based systems, scattering the thermal plume and making it harder to pinpoint. The aft section of the exhaust system incorporates ‘V-Trough’ carbon tiles, which are highly efficient at dispersing exhaust heat, rapidly cooling the thermal plume to minimize its infrared signature and avoid detection by advanced ground-based infrared systems.

Head-To-Head: The B-2 In Action

To truly appreciate the B-2’s prowess, consider a high-stakes engagement between the Spirit and a cutting-edge Russian S-400 Triumf air defense system. The outcome in such a scenario is determined as much by the aircraft’s design and hardware as by the pilot’s tactical mastery of the electromagnetic spectrum. While the S-400’s formidable ‘Big Bird’ search radar is marketed as an advanced counter-stealth system, the B-2 crew renders it effectively blind by exploiting the aircraft’s minuscule radar cross-section (RCS). As detailed by resources like ODIN (Open Source Defense Intelligence Network), the B-2’s RCS is comparable to that of a large insect. Pilots navigate the periphery of the radar’s sensitivity threshold, ensuring the airframe remains a transient flicker on enemy consoles, indistinguishable from background clutter, atmospheric interference, or even large birds.

The critical phase of the encounter begins with the handoff to the ‘Grave Stone’ fire control radar, as outlined by radar tutorials. This radar, designed for precision tracking and missile guidance, attempts to obtain a high-frequency tracking lock on the target. As the S-400 battery works to achieve this, the B-2 crew performs precision edge-alignment movements. By subtly positioning the bomber’s unique geometry along the radar’s line of sight, pilots optimize the distribution of the radar return, scattering the energy away from the enemy receiver. This tactical posture keeps the aircraft securely beyond the ‘burn-through’ zone – a critical 20- to 30-mile radius where the sheer strength of the radar signal might eventually overwhelm even the airframe’s formidable stealth qualities.

Should a surface-to-air missile be launched, the B-2 pilot immediately switches to an active defensive stance. The crew activates the advanced electronic warfare (EW) suite after determining the precise frequency and characteristics of the threat using the Defensive Management System (DMS). By capturing the incoming radar pulses from the missile’s seeker and rebroadcasting them with a deliberate, calculated delay and altered characteristics, the pilots successfully hijack the enemy’s incoming signal. The interceptor’s guidance logic is then forced to pursue a phantom coordinate, often miles from the aircraft’s actual position, as the enemy’s radar display is filled with numerous ghost targets and confusing echoes.

Ultimately, a seasoned B-2 crew strives to completely avoid terminal encounters. Utilizing its stealth and advanced targeting systems, the pilots employ standoff munitions to neutralize the threat well in advance of the battery’s effective engagement range. Precision strikes, often with satellite-guided bombs or cruise missiles, are aimed at the S-400’s radar components and missile launchers. By the time the B-2 reaches the theoretical detection zone of a surviving system, the enemy’s sensors have already been destroyed, allowing the Spirit to continue operating as an invisible penetrator.

Last Line Of Defense: Tactical Evasion And Illusion

If, against all odds, a B-2 Spirit is detected, pilots seamlessly transition from passive stealth to a multi-layered active defense strategy designed to break the enemy’s ‘kill chain’ and regain invisibility. Unlike conventional aircraft, the B-2 lacks defensive guns or air-to-air missiles; its survival depends entirely on its sophisticated electronic warfare suite and the crew’s tactical maneuvering. These systems are paramount in breaking the ‘lock’ of enemy fire-control radars and missiles, enabling the aircraft to accomplish its mission in even the most heavily contested areas.

While its intrinsic stealth is the B-2’s main "jammer," it also possesses specialized systems for more active defense when required, including decoy management and active countermeasures. For terminal defense against approaching radar-guided missiles, the B-2 can deploy specialized chaff – clouds of metallic strips that create a large, confusing radar signature. Against infrared-guided seekers, it can dispense flares, which emit intense heat, diverting the missile away from the aircraft’s thermal signature.

Among the B-2 Spirit’s most critical and highly classified components are the AN/ZSR-62/63 modules of its electronic countermeasures (ECM) system. These sophisticated systems function as the "active" side of the bomber’s stealth. Believed to be among the most advanced EW suites ever developed, they can "capture" an incoming enemy radar pulse, analyze its data in fractions of a second, manipulate its characteristics, and then rebroadcast it. By rebroadcasting altered signals, the suite can create convincing "ghost" targets on enemy radar screens, effectively obscuring the bomber’s real position or making it appear to be in multiple places simultaneously. This makes it nearly impossible for an enemy to achieve a "weapons-quality" track, turning the hunter into the hunted by sowing confusion in the adversary’s targeting systems.

The Invisible Flight Deck: Electronic Warfare In The B-2

While the aircraft’s unique shape serves as its primary passive shield, B-2 pilots employ a range of specialized systems and tactical maneuvers to remain invisible. Aircrew are trained to fly at extremely low altitudes, utilizing natural terrain features like hills and mountains to physically block radar radiation – a tactic known as terrain masking. The "Flying Dorito," as the B-2 is sometimes jokingly nicknamed, almost always operates in a ‘receive-only’ mode, passively collecting intelligence and targeting information from other networked aircraft or satellites via a secure data link without turning on its own radar, which would emit detectable signals.

At the heart of the B-2’s operational invisibility is its Defensive Management System (DMS). This advanced system detects hostile radar emissions from hundreds of miles away. Via a distributed network of high-sensitivity antennas hidden along the wing edges and throughout the airframe, the DMS constructs and displays a detailed ‘danger image’ on the cockpit screens. This real-time, three-dimensional map of enemy radar coverage enables pilots to dynamically change their flight route, weaving between the "holes" or weak regions in radar coverage where the B-2’s narrow radar cross-section is most effective. This constant adaptation ensures the aircraft avoids strong radar beams, minimizing the chances of detection.

The electronic warfare suite of the B-2 Spirit acts as its "invisible shield," making the aircraft not just difficult to see, but actively dangerous to track. Even when its active scanning radar is used for targeting, it employs advanced ‘frequency hopping’ and ‘spread spectrum’ technology. Instead of transmitting on a single, easily detectable frequency, it spreads its signal across a wide band of frequencies in a seemingly random and rapidly changing pattern. This makes the signal virtually indistinguishable from background cosmic radiation or electromagnetic clutter to enemy sensors, allowing the B-2 to achieve its mission objectives with unparalleled discretion.

The Most Exquisite Bomber

In the year 2026, the B-2 Spirit remains the premier stealth strike platform in military history, an unparalleled asset for global power projection. Its successor, the B-21 Raider from Northrop Grumman, is expected to debut very soon, building upon the B-2’s legacy of low observability. However, the B-2 Spirit will continue to serve alongside its younger counterpart for years before its eventual retirement, a testament to its enduring capabilities. Despite the continuous advance of air defense technologies worldwide, the stealth technology of the B-2 is so complete and multifaceted that it remains virtually invulnerable to even the best counter-air systems anywhere in the world.

The B-2 Spirit remains one of the most sophisticated machines ever created, a triumph of engineering and strategic vision. It is also notoriously the most expensive aircraft ever made, with its unit production price tag often cited at a staggering $2 billion per frame. This figure, however, included the extensive research and development costs that led to groundbreaking advancements in stealth technology. These breakthroughs have provided the United States with a decisive advantage, keeping it decades ahead of its potential adversaries in airpower technology and strategic deterrence.

That advantage is not due to a single ‘cloaking technology,’ but rather to a clever and comprehensive integration of aerodynamic shaping, advanced materials, and sophisticated electronic management designed to defeat every stage of an Integrated Air Defense System’s kill chain. The aircraft’s four engines are buried deep within S-shaped intake ducts, preventing radar waves from directly hitting the highly reflective compressor blades. Furthermore, all weapons, from conventional precision-guided munitions to nuclear payloads, are carried in internal bays, eliminating external hardpoints that would otherwise create significant radar "hotspots" and compromise the aircraft’s stealth profile. The B-2 Spirit is not just a bomber; it is a meticulously crafted system designed for unparalleled penetration and strategic dominance.
